DMX 512 Controller 384 Channel Operator Console Moving Head Light Controller

Product Detail:

The Controller is a universal intelligent lighting controller. It allows the control of 24 fixtures composed of 16 channels each and up to 240 programmable scenes. Six chase banks can contain up to 240 steps composed of the saved scenes and in any order. Programs can be triggered by music, midi,automatically or manually. All chases can be executed at the same time.

On the surface you will find various programming tools such as 16 universal channel sliders, quick access scanner and scene buttons, and an LED display indicator for easier navigation of controls and menu functions.

Upgraded DMX 384 controller, more simple programming, without setting the scene can be directly programmed. (Just edit the Chase step, enter the programming mode.)

Reversible slider, power off function and power off memory. Voice activation function, coupled with wireless transmitter, let you say goodbye to the complicated wires, stable performance.

Compatible with all lamps with 3-pin DMX cable, the light console can easily guide you to complete the programming, playing and live operation of Chases, perfect for DJ, stage, disco, nightclub, party, wedding, etc.

Specifications:

Product Type: DMX Controller

Channel: 384

Protocols: DMX-512 USITT

Input: 110V

Plug: US Plug

Size: 20.7x7.3x2.9inch/52.6x18.5x7.3cm

Weight: 6.7lbs/3.05kg

Packaging size: 62x24x16 cm

Data Input: locking 3-pin XLR male socket

Data Output: locking 3-pin XLR female socket

30 banks each with 8 scenes; 6 chase, each with up to 240 scenes

Record up to 6 chases with fade time and speeds

16 sliders for direct control of channels

MIDI control over banks, chases and blackout

Built-in microphone for music mode

Auto mode program controlled by fade time sliders

DMX in/out: 3-pin XRL

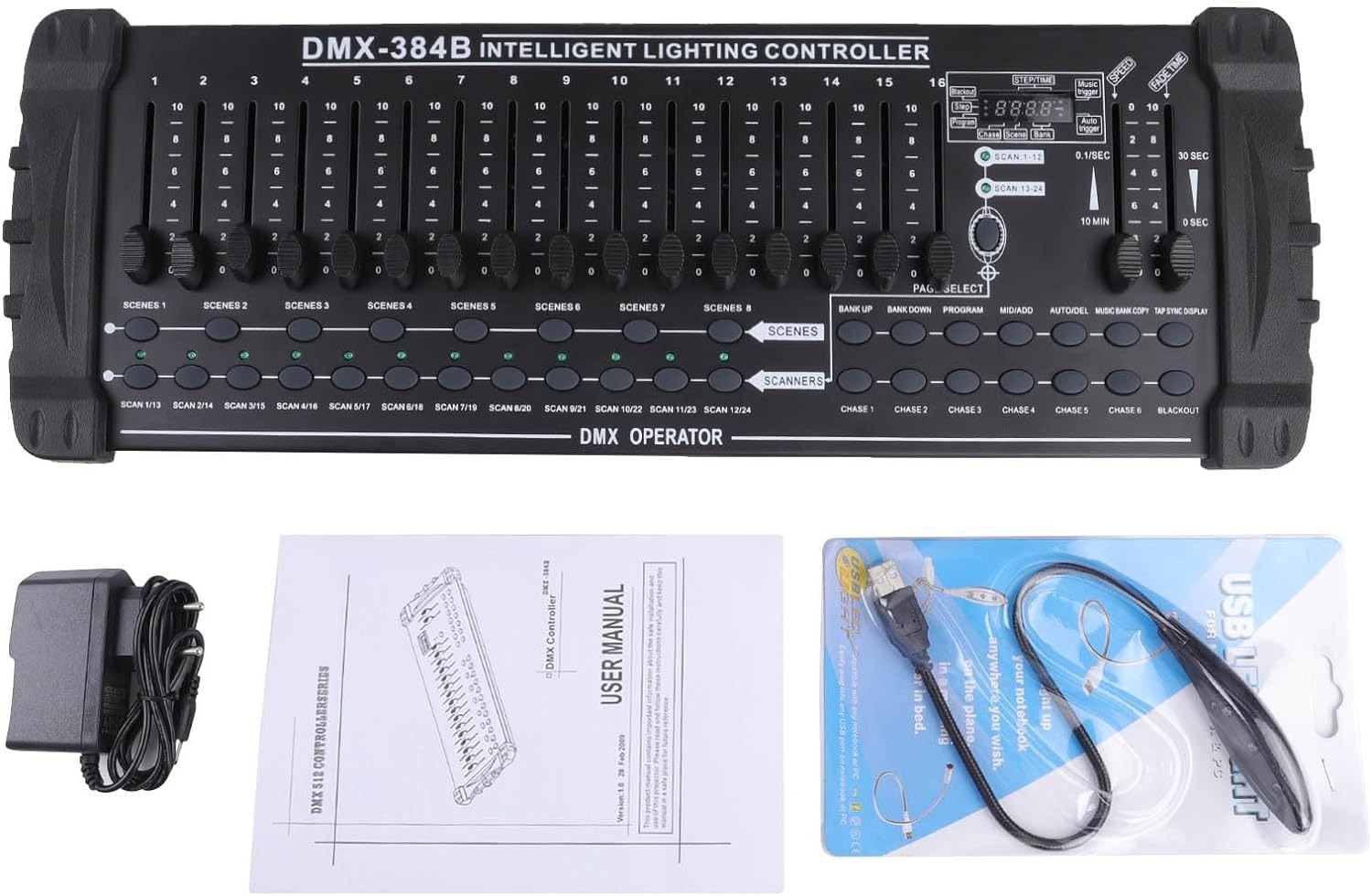

Package Included:

1 x DMX Controller

1 x Power Adapter

1 x LED Gooseneck Lamp
